Anode types ZT & ZP

TECHNICAL DATA SHEET

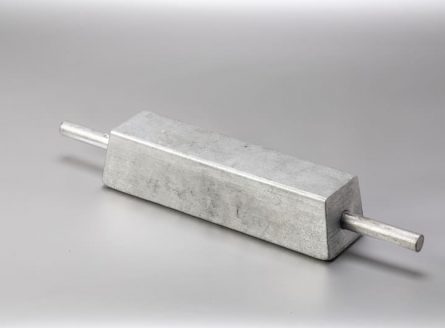

Galva Procat® zinc anodes, type ZP and ZT, are used for the cathodic protection of all “off-shore” submerged structures (jacket, piles, sheet piling, etc.) but also for the protection of tanker tanks and ballast tanks (tankers, etc.).

Our ZP and ZT anode range  is particularly wide; the net masses can vary from about 6 to 250 kg with variable and adjustable sections and lengths on request.

Fastener inserts can be flat (folded or not) round or tubular (angled or not), with specific holes according to your needs. An epoxy paint can be applied on the inner side.

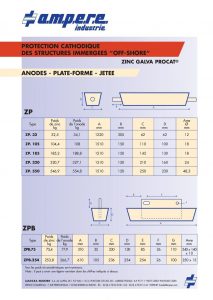

Anodes pour offshore et portuaireanodes for offshore and harbour

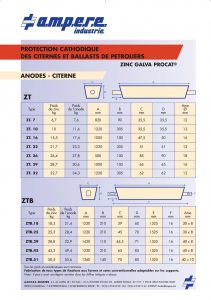

Anodes pour ballastanodes for ballasts and tanks
